EM2500C

Categories: Coax, Etherstretch Tags: Midspan, Single

Midspan IP and PoE Extender over Coax. Use with Transmitters ET1500C, ET1543C, ET4500C ;with Receivers ER1500C, ER8500C and ER16500C Receivers only.

Overview

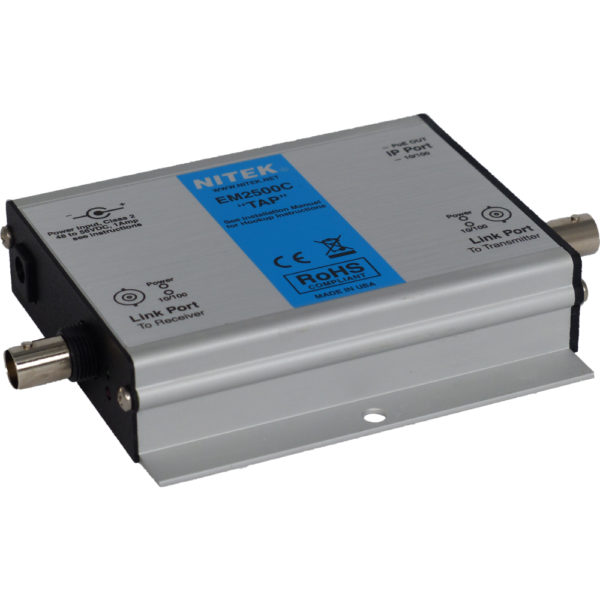

The EM2500C is a mid-span repeater/extender for NITEK’s EtherStretch Ethernet & PoE over coax solution. It allows for the introduction of a powered 10/100 Ethernet port in the middle of an existing coaxial link or the extension of an existing link to beyond 500m. The EM2500C can sit as far as 500m from the head end, and communicate to another EM2500/ET1500C/ET1543C at distances of up to 500m and beyond. The EM2500C includes a power jack and power supply for long links.

The EM2500C is housed in an industrial-grade anodized aluminum housing with mounting ears and has LEDs for upstream and downstream link status, port link status, and POE status.

Features

Add new 10/100 IP port to any RG-59/RG-6 coaxial run
Power port allows midspan power injection to extend run
Multiple units can be daisy-chained for links longer than 500m
Extends 10/100 Mbps Full Duplex Ethernet & PoE up to 500 meters over coax
Supports any IP network device & 4K cameras
Supports IEEE802.3at (25.5W) and IEEE802.3af (15.4W)
Fully Transparent to the Network, no MAC or IP addressing required
LED indicators for power, network rate, link status, and PoE output includes a built-in power source for all connected devices
Ground loop isolation
Easy to set up and install
Limited Lifetime Warranty
Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance

Requirements: 48VDC to 56VDC, 1A
Power Output: Meets IEEE802.3af/at
PoE Source: IEEE 802.3af/at

Power

Requirements: 48VDC to 56VDC, 1A
Output: Meets IEEE802.3af/at
PoE Source: IEEE 802.3af/at

LED Connectivity Indicators

Indicators: Link Status, Power, PoE out, 10/100Mb at RJ45

System Latency

System Latency: <1mS over 300m RG-59

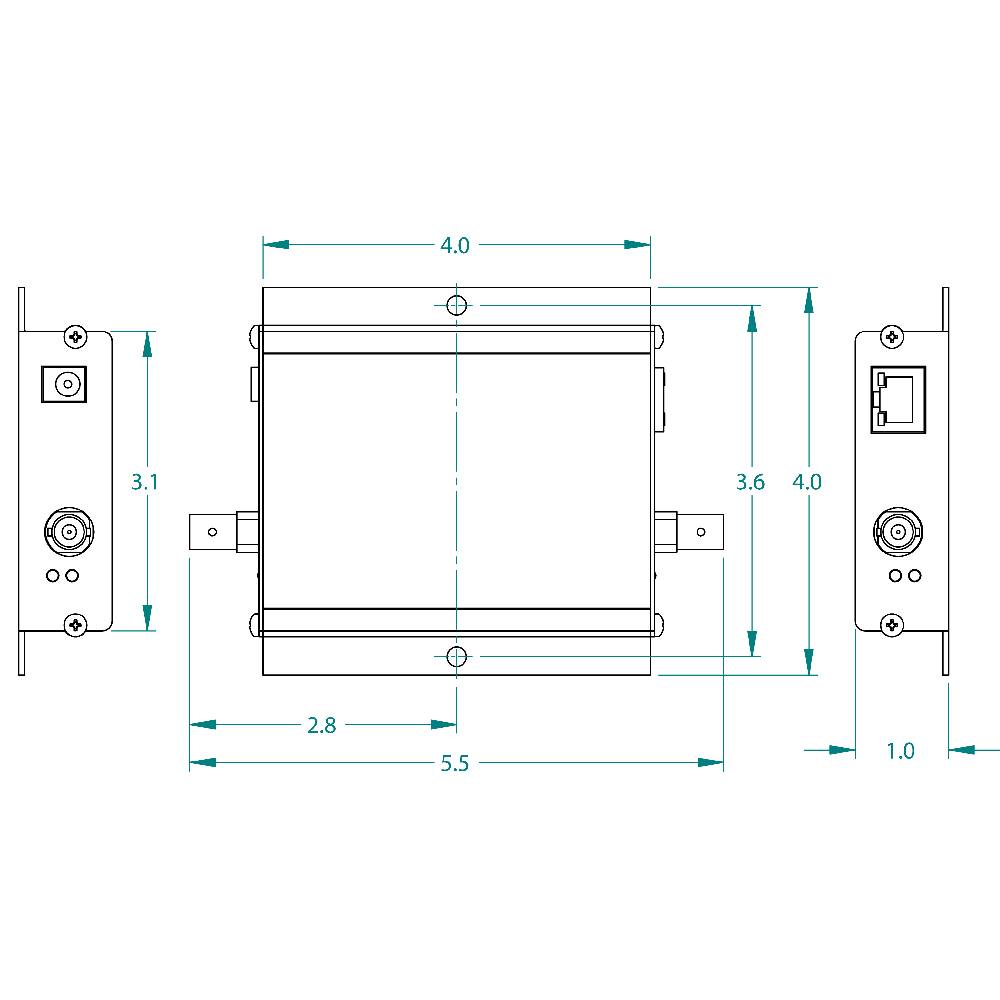

Mechanical Dimensions (L x W x H)

25mm x 102mm x 140mm / 1″ x 4″ x 5.5″ (including tabs and BNCs)

Shipping Dimensions (L x W x H)

Package: 76mm x 175mm x 246mm / 3.0″ x 6.9″ x 9.7″
Weight: 0.9kg / 2lbs

Environmental / Temperature

Operating: -40°C to 75°C / -40°F to 167°F
Storage: -40°C to 75°C / -40°F to 167°F
Humidity: Up to 90% non-condensing

Connectors

Network Port: 1 RJ45 Connector 10/100 with POE
Link Port: BNC Coax Jack

Warranty Information

Limited Lifetime Warranty
