ET1551UM

Categories: , Tags: ,

Mini IP over 2 Wire UTP Receiver.

Overview

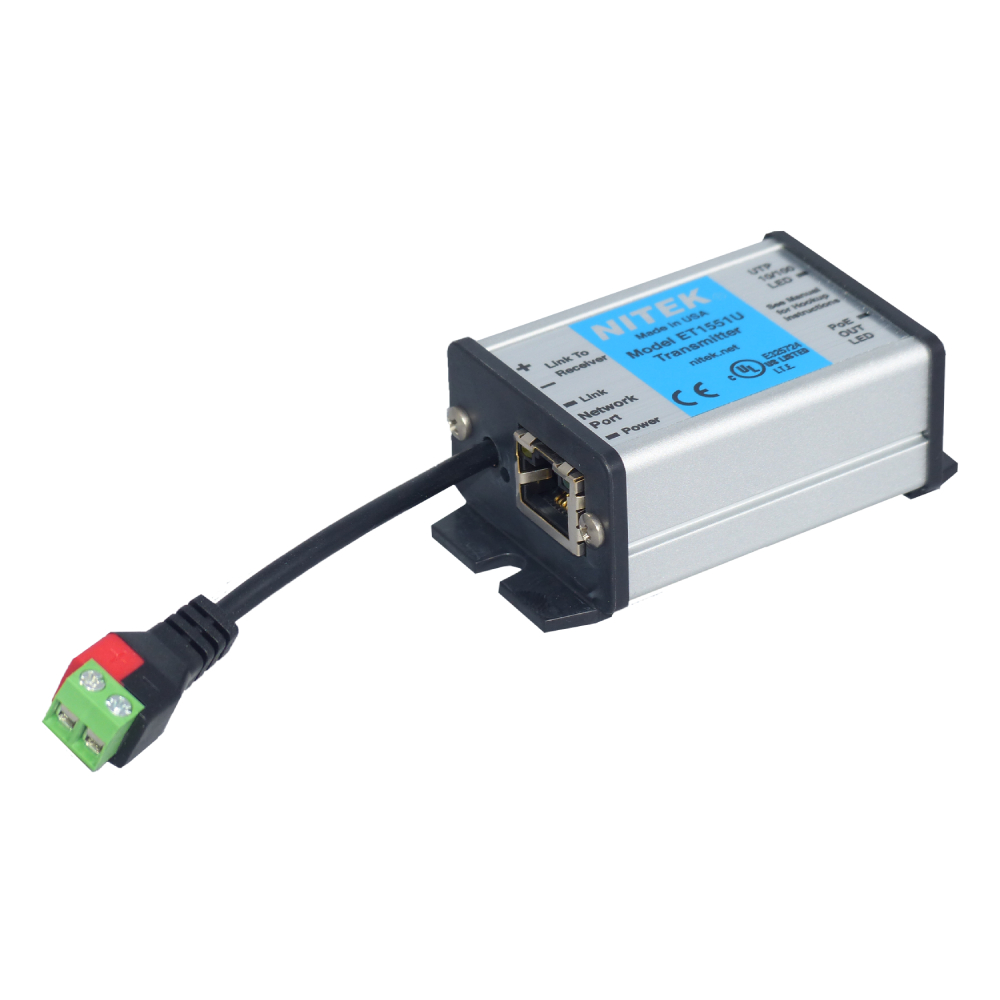

The ET1551UM is the transmitter side device of an EtherStretch link extender, available in a convenient miniature enclosure.. This environmentally hardened device allows for the creation of a 10/100 Ethernet link over ONE pair Cat3 (or better cabling) for distances up to 300m.Multiple links can share individual pairs in a Cat5/6 or similar cabling. Shielded and non-twisted cabling will have reduced distances. Larger gauge conductors will improve power transfer.

The ET1551UM will communicate back to a ER1551U single channel or ER1651U multi-channel receiver at the head end which provides power and network connection. LEDs indicate link speed and status.

Features

  • Environmentally hardened-meets NEMA TS-1/TS-2
  • Supports 10/100 over UTP rated up to 300 meters (1000 feet)
  • Fully transparent to the network
  • Supports any network device, including Mega-pixel technology IP cameras
  • No IMAC or IP addressing required
  • LED indicators for network signals, link status, and power
  • The optional power supply can insert POE power for non-POE switches
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Network Port: 100m
  • Link Port: 300m
System Latency
  • System Latency: <1mS over 600 ft CAT5e
Rating / Listing
UL: IEC/UL 60950-1
NEMA TS-2: Temperature & Humidity NEMA 2.2.7
  • Mechanical Vibration NEMA 2.2.8
  • Mechanical Shock NEMA 2.2.9
  • Operating Voltage NEMA 2.1.2
  • Operating Frequency NEMA 2.1.8
  • Transient Test NEMA 2.1.6 thru 2.1.8
Data
  • Ethernet: Auto Configuring 10/100 Full Duplex
LED Connectivity Indicators
  • Indicators: Link Status, Power, POE Out, 10Mb or 1000Mb
Connectors
  • Network Port: 1 RJ45 Connector, 1 Gigabit
  • Link Port: Twisted Pair Wire
  • UTP Cable Specifications
  • DC Loop Resistance: 51 Ohms/1000 feet (max) (51 Ohms/304m)
  • Normal Capacitance: 17pF/ft.
  • Impedance: 100 Ohms +/-20%
  • UTP Category: 2 or better
Environmental / Temperature
  • Operating: -40°C to 75°C / -40°F to 167°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 34mm x 35mm x 40mm / 1.1″ x 1.6″ x 4.6″
Shipping Dimensions (W x H x L)
  • Package: 76mm x 52mm x 178mm / 3″ x 2′ x 7″
  • Weight: .45kg / 1lb

Warranty Information

Limited Lifetime Warranty
