IPGPU1X8rk

Categories: , Tags: ,

8 Channel IP Surge Protector – Gigabit w/POE+ for DIN Rail Mount for 19″ rack

Overview

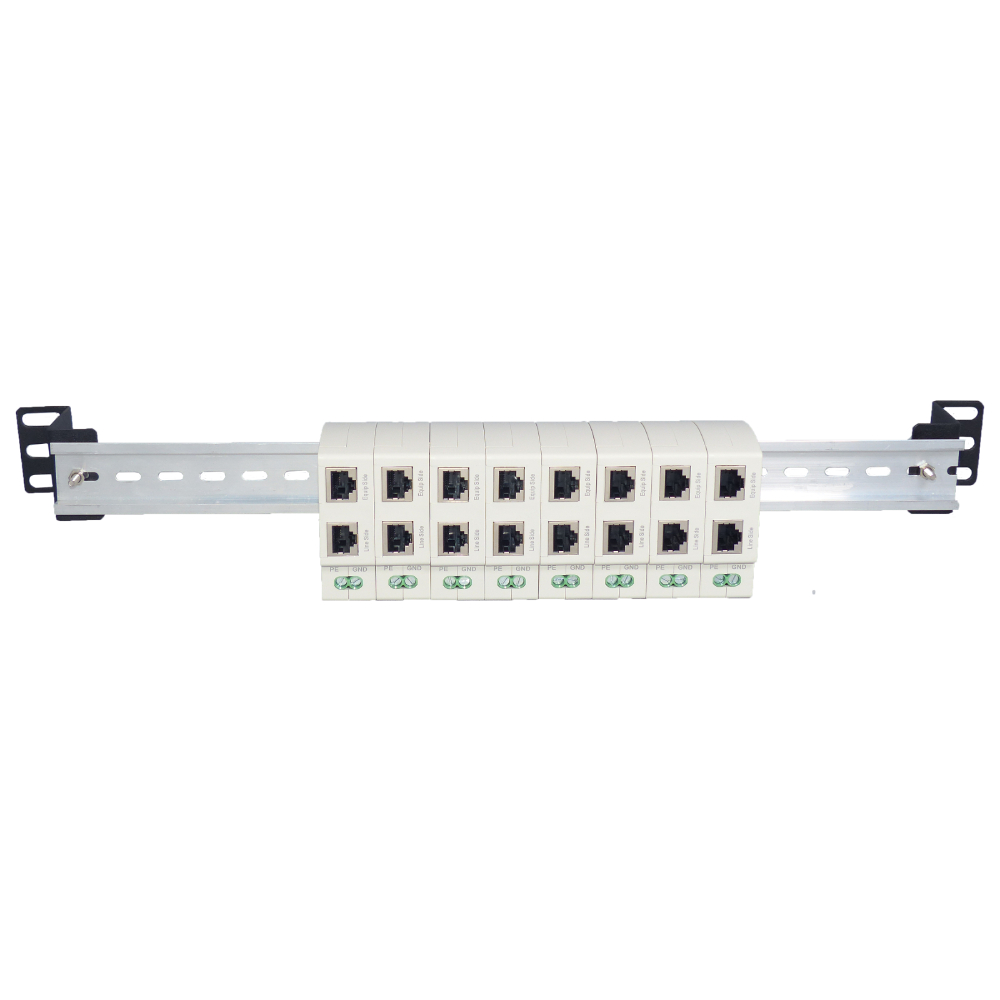

The IPGPU1X8RK is an 8-channel, 10/100/1000 Ethernet & PoE+ surge protector kit with Shielded RJ45 connectors. It works for both shielded and non-shielded applications. The DIN rail mounting design enables multiple units to be installed side by side in a compact space. The units have shielded RJ45 jacks with dual point screw earth-ground connections for easy and quick installation. The RK1GP rack mount DIN rail is included.

Features

  • Single Channel Multi-Stage
  • Modular top hat 35mm din rail design
  • For both Shielded and non-Shielded applications
  • Protects IP data and PoE circuits
  • Supports megapixel IP cameras
  • Compatible with PoE+ power
  • IPGPU1X8RK can be easily installed in data communication systems
  • IPGPU1X8RK can be connected in series to CAT6 network cables and is compatible with 10/100/1000 Ethernet systems
  • Protects network equipment (ex. IP Cameras, switches, PoE devices, etc.) against damages by transient voltages external to the system
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Electrical Specs
  • Normal Operating Voltage: 2.8V(Ethernet) / 48V(PoE)
  • Max. Continuous Operating Voltage: 3V(Ethernet) / 60(PoE)
  • Nominal Discharge Current (8/20us): 3kA (line-to-line)
  • Max. Discharge Current (8/20us): 20kA (line-to-earth)
  • Pairs Protected: 1-2, 3-6, 4-5, 7-8
  • Protective Element: TVS, GDT
  • PoE voltage range: 48-56VDC
  • Network Transmission Rates: 10/100/1000
  • Response Time (tA): <1ns
  • Maximum Operating Altitude: Surge Life at 0.5db @100Mhz
  • Cross-section area if the earth lead: 3mm2 multi strand / flexible

Mechanical Dimensions (L x W x H)

  • 483 x 51mm x 78mm / 19″x 2.0″ x 3.1″
Shipping Dimensions (L x W x H)
  • Package: 216mm x 457mm x 610mm / 8.5″ x 18″ x 24″
  • Weight: 5.44kg / 12lbs

Warranty Information

Limited Lifetime Warranty
