ML401

Categories: , Tags: ,

Fiber Media Converter, 10/100BaseTX, to 100BaseFX, one (1) SFP Port, One (1) Network Port. requires RK5000.

Overview

NITEK’s fiber-optic Media Converters line allows the customer to extend 10/100 or Gigabit Ethernet communications well beyond the reach of copper solutions. NITEK offers versions of Media converters that work over pairs of singlemode fiber or multi-mode fiber, and variants that will communicate over a single optical fiber. Max link distances range from 2 to 20 km, and beyond. NITEK’s media converters also offer a range of configurations: stand-alone or rack-mount, and voltage options such as low voltage (5V, 6V-15V), industrial voltages (12-30VAC, 12-57VDC), and POE (48-57V). The POE models will output power on the network port to power remote cameras or devices.

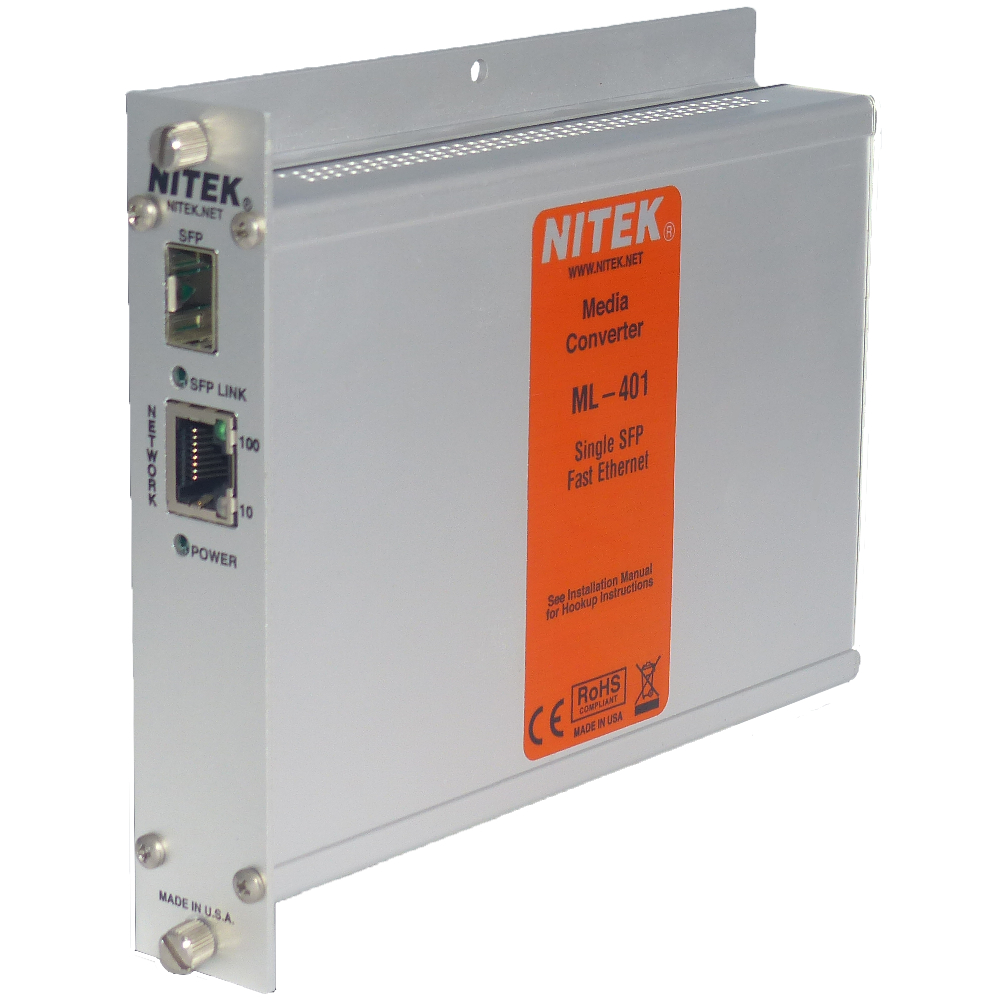

The ML401 is a rack-mountable media converter solution for extending 10/100 Ethernet. The ML401 offers an industry-standard SFP port, allowing the user to adapt to virtually any type of fiber or link distance (SFP not included).

Features

  • Rack/wall mountable
  • Accepts Industry Standards SFPs
  • 10/100 capable
  • Compliant with IEEE802.3 standards
  • Autosensing MDI/MDIX crossover on network ports
  • LED indicators for network signals, link status, and power
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Electrical: Up to 100 meters on Network Port 10/100 copper)
  • Optical: User-selectable SFP (not included), allows the user to adapt to virtually any type of fiber and link distance
Power
  • Requirements: User selectable (not included)
LED Connectivity Indicators
  • Indication: Green Flashing LEDs for 10/100BASE electrical link & activity
  • Green Flashing LED for Optical link & activity
  • Green LED for Power
Mechanical Dimensions (L x W x H)
  • 168mm x 28mm x 132mm / 6.6″ x 1.1″ x 5.2″
  • Rackmount (RK-CHASSIS)
Shipping Dimensions (L x W x H)
  • Package: 203mm x 152mm x 51mm / 8” x 6” x 2”
  • Weight: .90kg / 2lbs
Environmental / Temperature
  • Operating: 0°C to 50°C / 32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 90% non-condensing
Connectors
  • Network Port: RJ45 Connector
  • Network Port: SFP Connector
Data
  • Ethernet: 10/100Mbps full or half-duplex
Optical
  • SFP Ports: 1
  • Optical Ethernet: 100BASE-FX

Warranty Information

Limited Lifetime Warranty
