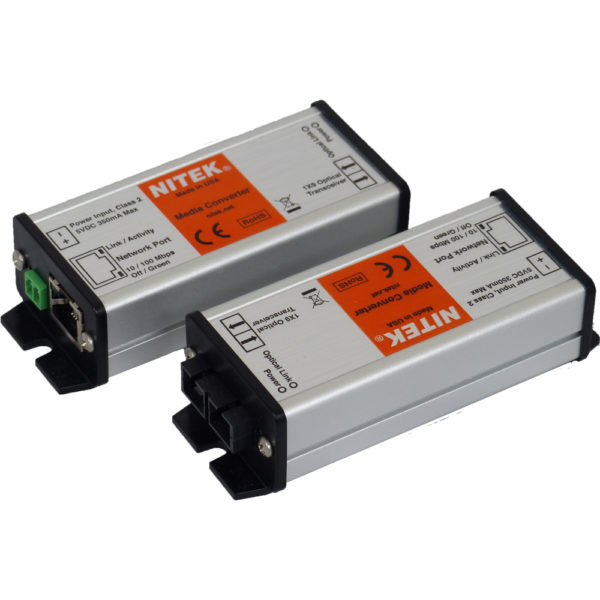

MM100L

Categories: , Tags: ,

Fiber Media Converter, 2KM, 10/100Base TX to 100BaseFX, MM, 1310nm Receive, 5V, SC Connector.

Overview

NITEK’s fiber-optic Media Converters line allows the customer to extend 10/100 or Gigabit Ethernet communications well beyond the reach of copper solutions. NITEK offers versions of Media Converters that work over pairs of singlemode fiber or multi-mode fiber, and variants that will communicate over a single optical fiber. Max link distances range from 2 to 20km, and beyond. NITEK’s Media Converters also offer a range of configurations: rack-mount and voltage options such as low voltage (5V, 6-15V), industrial voltages (12-30VAC, 12-57VDC), and PoE (48-57V). The POE models will output power on the Network Port to power remote cameras or devices.

The MM100L is NITEK’s most economical Media Converter. The MM100L is a rugged and cost-effective solution for extending 10/100 Ethernet up to 2km over SC terminated multi-mode optical fiber.

Features

  • Miniature Design
  • 1x 10/100 (Fast Ethernet) RJ45 Network Port
  • 1x 100BASE-FX SC duplex multi-mode port
  • Extends 10/100 Ethernet up to 2km over multi-mode fiber
  • Compliant with IEEE802.3 standards
  • Autosensing MDI/MDIX crossover on a Network Port
  • LED indicators for network signals, link status, and power
  • Power supply included
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Max Operating Distance
  • Electrical: Up to 100m on Network Port (10/100 copper)
  • Optical: Up to 2km using SC duplex multi-mode 50um or 62.5um fiber
Power
  • Requirements: 5VDC 350mA Max
LED Connectivity Indicators
  • Indication: Green Flashing LED for optical link activity
  • Green LED for 10/100 status
  • Green LED for power
Mechanical Dimensions (L x W x H)
  • 109mm x 43mm x 30mm / 4.3″ x 1.7″ x 1.2″
  • Mounting: (2x) 8mm / 3/8″
Shipping Dimensions (L x W x H)
  • Package: 178mm x 152mm x 51mm / 7” x 6” x 2”
  • Weight: 0.45kg / 1lbs
Environmental / Temperature
  • Operating: 0°C to 70°C / 32°F to 158°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 90% non-condensing
  • Mean Time Between Failure: >100,000 Hours
Connectors
  • Network Port: RJ45 Connector
  • Optical Port: Duplex SC multi-mode fiber
Data
  • Ethernet: 10/100Mb full or half-duplex
Optical
  • Optical Wavelength: 1310nm
  • Optical Launch Power: -9dBm (max) to-14dBm (min)
  • Minimum Receiver Sensitivity: -33dBm @1x10E-10 BER
  • Receiver Overload Power: -8dBm
  • Minimum Optical Budget: 19dB

Warranty Information

Limited Lifetime Warranty
