PS115

SKU: P 661955011529 Categories: , Tag:

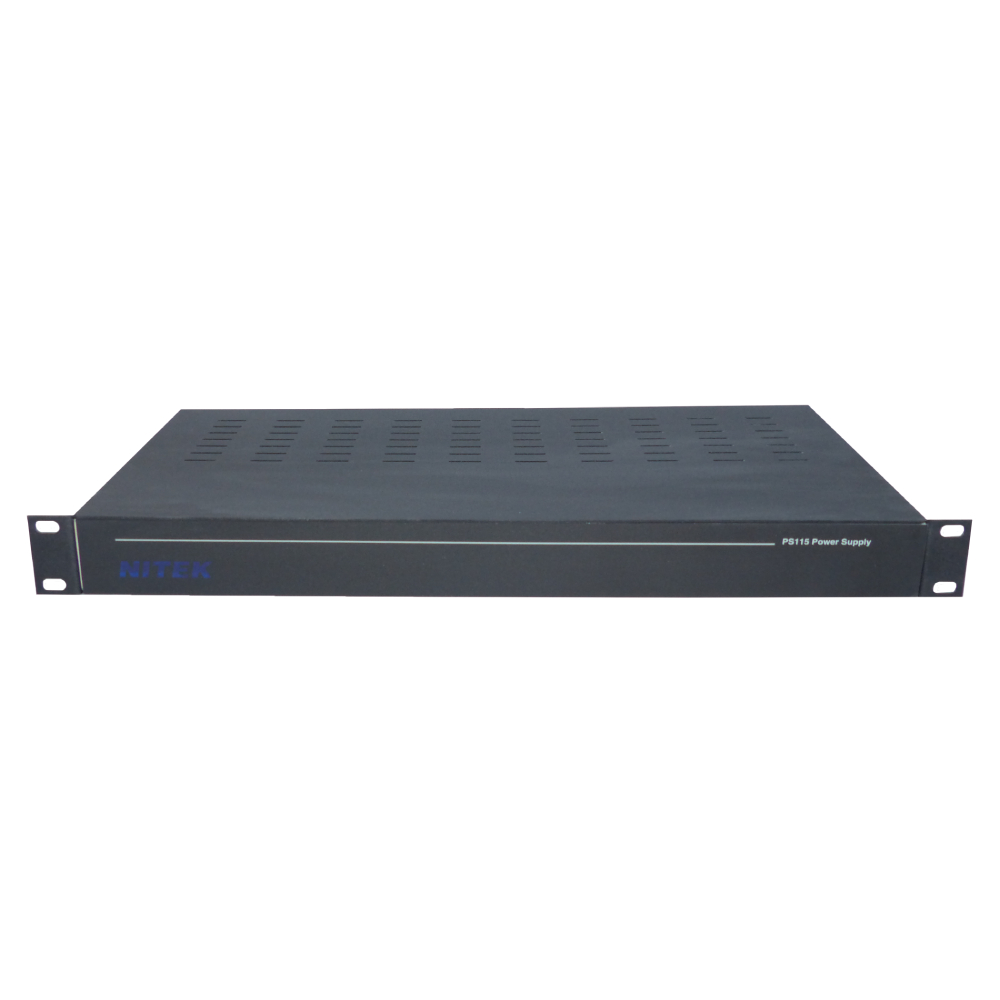

Power Supply – 28VAC, 10 AMP, 1 RU High

Overview

The PS115 power supply provides 10 Amps of current for fixed cameras and P/T/Z. Power is provided to the CX452 crossover unit in the UTPLinks system for power insertion and distribution to cameras by the CX452 unit. The number of cameras and/or P/T/Z units that can be powered by the PS115 is dependent upon the current requirements of the equipment being powered. Contact Nitek tech support for information regarding specific P/T/Z equipment. The PS115 can be located at a mid-span position; i.e. IDF closet or at the head-end. These power supplies must be located in close proximity to the CX452 crossover units.

Features

  • Power is provided to cameras and P/T/Z units in a closed, self-contained system
  • PS115 units mount in a 19″ rack
  • Easy to install and configure
  • Designed to be compatible with Structured Cabling standards
  • Video, data & power can be run in the same Category 5 cable without interference
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Power Requirements
  • 120 VAC
Power Outputs
  • Output Voltage 28 VAC
  • Output Current 10 Amps
Environmental / Temperature
  • Operating: 0°C to 50°C/ -32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 19″ x 1.75” H x 8.6” L
Shipping Dimensions (W x H x L)
  • Package:
  • Weight: 2lbs
