RK5000

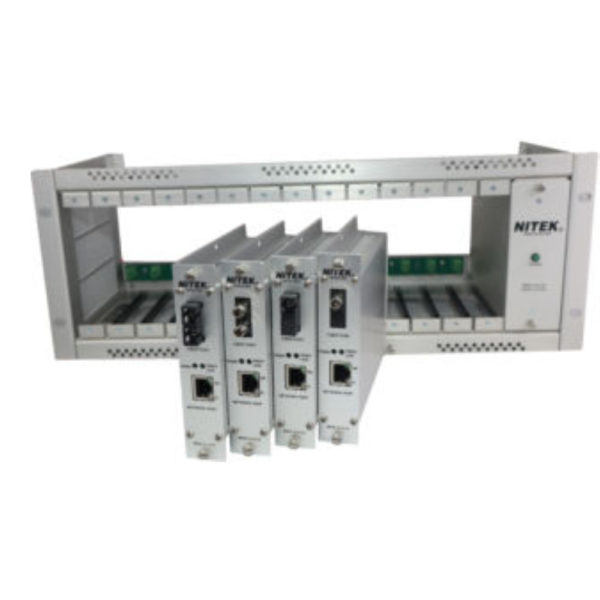

12 card Slot Fiber Media Converter, Industrial Rack Mount Card cage.

Overview

The RK5000 is a rack-mountable power supply for MM/MS/ML 4xx Media Converters. The RK5000 provides power for up to 14 Media Converters in a convenient 4RU format. The Rack is vented for passing cooling and provides a cable pass-through.

Features

  • 19″ Rack-mountable (4RU) chassis for MM/MS/ML-4xx series media converters
  • Provides power and mounting for up to 14 media converter cards
  • Power supply is user-replaceable
  • Cable pass-through
  • Vented for passive cooling
  • Anodized aluminum construction
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Electrical
  • Power Requirements: Universal 115VAC/230VAC 50/60Hz
  • 3A/1.5 fuse @ 115VAC/230VAC
  • 12V@7A output
  • Front panel power indicator
  • Front-replaceable power supply
  • Capacity: 14 powered slots + power supply
Mechanical Dimensions
  • 4RU 19″ Rack size 7.9″ / 201mm Depth
  • Construction: Anodized aluminum construction
Shipping Dimenssions (L x W x H)
  • Package: 543mm x 270mm x 264mm / 21.38″ x 10.62″ x 10.38″
  • Weight: 2.72kg / 6lbs
Environmental / Temperature
  • Cooling: Passive Cooling
  • Operating: 0°C to 50°C / 32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 90% non-condensing
  • Mean Time Between Failure: >100,000 Hours

Warranty Information

Limited Lifetime Warranty
