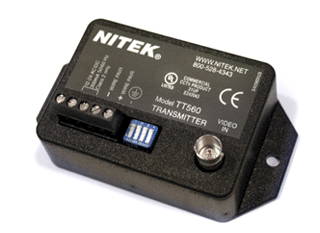

TT560

SKU: P 661955025410 Categories: , Tags: ,

Active Video Balun Transmitter – For Use with TR560 Receiver

Overview

The TT560 Active Long Range UTP Video Balun Transmitter is designed for longer range live video operation over twisted pair category cables. The TT560 requires a Nitek active TR560 or Series 56 Active Receiver unit. The units work equally well over existing communication and computer network spare pairs or new cable installations. A highly balanced transmitter output design assures that the system will not interfere with other equipment on the network. In addition, the transmitter is virtually impervious to the ground loop and has high immunity to noise and interference from other signals. Built-in surge suppression is standard.

A dip switch on the unit provides precise adjustment of gain and frequency compensation, allowing the system to be fine-tuned for any cable.

Features

  • Active electronics compensate for frequency and level loss
    Built-in protection from power surges, transients, static or other electrical interference
  • High-resolution color or monochrome videoImmunity to ground loop; video and AC can be run in a common raceway, where allowed
  • Video can be run in the same cable with telephone and computer signal
  • Weather-resistant design
  • Easy to install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Power Requirements
  • 12 to 24 VAC or VDC, 300mA
Input
  • 1 Vpp composite video Monochrome or Color
Output
  • Balanced low voltage current loop
Common Mode Rejection
  • >70dB
Video Format
  • PAL, SECAM, NTSC, RS170, CCIR (Color or B/W)
Operating Frequency
  • DC to 10 MHz
Wire Spec
  • 26 to 18 AWG twisted pair
Category Wire
  • 2 or better
Impedance
  • 100 Ohms +/- 20%
Twisted Pair Connection
  • Screw terminals
Recommended Transmission Distance
  • Up to 3,000 feet w/passive baluns
  • Up to 6,000 feet w/active transmitters
Environmental / Temperature
  • Operating: 0°C to 50°C/ -32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 1 RU x 6.0” D
Shipping Dimensions (W x H x L)
  • Package:
  • Weight: 2lbs

Warranty Information

Limited Lifetime Warranty
