VB41x8

SKU: P 661955085117 Categories: , Tags: ,

8 channel Balun Transceiver Card, W/Surge Suppression – up to 750 ft. Use with VH3200.

Overview

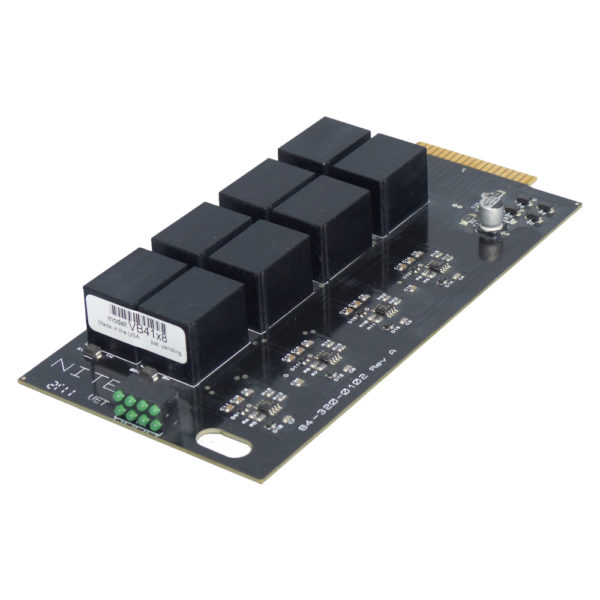

The VB41x8 modular card is designed for use with the modular rack system. Each card has 8 video balun units, built-in surge protection, and video loss detection.

The NITEK video baluns are transmission devices that provide a low-cost means of sending live video over unshielded twisted pair, point-to-point wiring for distances of up to 750 feet (225 meters). The NITEK video baluns are also compatible with all of the up-the-coax control systems.

The NITEK video baluns are transmission devices the provide a low-cost means for sending live video over unshielded twisted pair, point-to-point wiring for distances up to 750 feet. The NITEK video baluns are also compatible with all of the “up-the-coax” control systems. A basic system would require one unit at each end of a twisted pair of wires. The Nitek video baluns are intended for use over existing in-house telephone wiring, Category wiring or other twisted pair cable runs to provide a convenient, cost-effective alternative to coax. Nitek video baluns are designed to provide immunity from noise and interference, even when run next to line power!

The VB41x8 plugs into the VH3200 card cage, which holds up to four (4) modular cards. This modular “plug-in” feature allows the system to be custom configured for each application and provides easy expandability.

Features

  • Quality video over ordinary twisted pair cable
  • Built-in surge suppression Immunity to noise and interference
  • Built-in video loss detection Video & P/T/Z over a single pair (with “up-the-coax” systems)
  • RJ45 or push terminals for easy connection
  • Easy to set up and install
  • Limited Lifetime Warranty
  • Designed, tested, manufactured, and supported in the U.S.A.

Technical Specs

Output
  • (8) 1 vpp composite video Monochrome or color
Twisted Pair Connection
  • (8) Balanced low voltage current Loop
Common Mode Rejection
  • 60 dB
Operating Frequency
  • DC to 10 MHz
Transient Immunity
  • Built-in
Wire Spec
  • 26 to 18 AWG twisted pair
  • DC Loop Resistance: 51 Ohms / 1,000 feet
  • Nominal Capacitance: 17pF/ft
  • Impedance: 100 Ohms +/-20%
  • Category Wire: 2 or better
Environmental / Temperature
  • Operating: 0°C to 50°C/ -32°F to 122°F
  • Storage: -40°C to 85°C / -40°F to 185°F
  • Humidity: Up to 95% non-condensing
Mechanical Dimensions (W x H x L)
  • 1 Card Slot
Shipping Dimensions (W x H x L)
  • Package:
  • Weight:

Warranty Information

Limited Lifetime Warranty
